Ankylosaurs by the sea

Ankylosaurs, like probably most other dinosaurs, were landlubbing, terrestrial animals without obvious aquatic adaptations. And yet, surprisingly, their fossils are found in marine sedimentary environments more often than most other dinosaurs (except hadrosaurs). Some, like Aletopelta, wound up in shallow or lagoonal environments – Aletopelta’s carcass became a reef! – but some, like the Suncor nodosaurid, wound up far away from shore.

Aletopelta! See if you can spot the oyster marks, invertebrates, and shark teeth around the pelvis and legs.

I wanted to look into this phenomenon in a bit more detail than it had been investigated previously, and with my work on ankylosaurid phylogenetics and biogeography published last year the time was right to dive into marine ankylosaurs. I added in more taxa into my ankylosaurid character matrix to check whether there were any secret ankylosaurids hiding in the taxa I didn’t previously include.

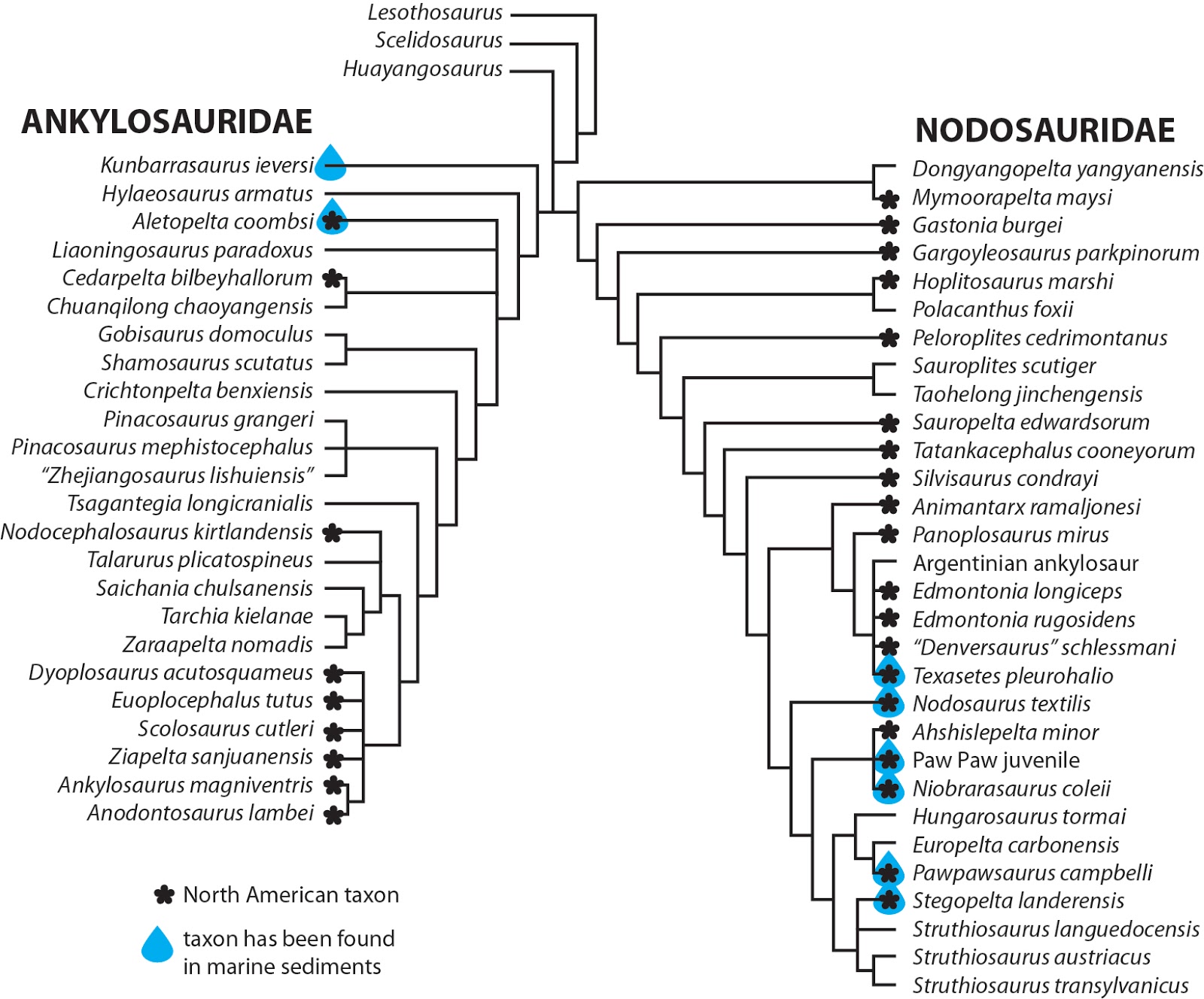

Surprisingly, Hylaeosaurus popped out as a basal ankylosaurid in this analysis, an intriguing result that I think needs further investigation but could be really interesting. Mostly everything else that should be a nodosaurid was a nodosaurid, and I got surprisingly good resolution in the Nodosauridae, but take the interrelationships there with a tiny grain of salt given that I didn’t make any new characters for this analysis and the existing character set is geared towards ankylosaurids.

Next up, I downloaded a dataset of all the ankylosaur occurrences in the Paleobiology Database and went through each entry (more than 500!) to verify whether or not the specimens were ankylosaurids, nodosaurids, or if we couldn’t tell for sure, and their depositional environment. With that data in hand, we wanted to know what the geographic distribution of ankylosaur marine occurrences looked like, and here it is:

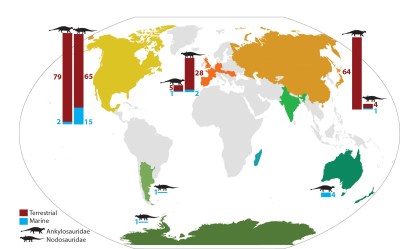

Lots of ankylosaurs in the northern hemisphere, not so many in the southern hemisphere. More than half of marine ankylosaurs occur in North America, which is perhaps unsurprising given that North America had a bad habit of being underwater for a lot of the Cretaceous. When we exclude indeterminate occurrences, we get an ankylosaurid-nodosaurid marine-terrestrial split that looks like this:

In North America and Asia, the distribution of ankylosaurs in different environments is statistically significant, but it isn’t in Europe (and remember, Hylaeosaurus hasn’t previously been found as an ankylosaurid so there might not even be ankylosaurids in Europe).

Although there are nodosaurids and ankylosaurids in Asia, I don’t think they overlapped very much in time – nodosaurids disappear from the Asian fossil record around the time that ankylosaurids appear. North America is unique in that it is the only place where we find both clades of ankylosaurs overlapping for significant chunks of time, so I wanted to know whether or not the significant marine-terrestrial dichotomy holds up in different time intervals within North America. We decided to divide up the dataset by the ebb and flow of the Western Interior Seaway, or, transgressive-regressive cycles. There were several major cycles well known to sequence stratigraphers and other geologists, and it seemed like a logical way to look at how the seaway influenced marine occurrences in ankylosaurs. How does that data look?

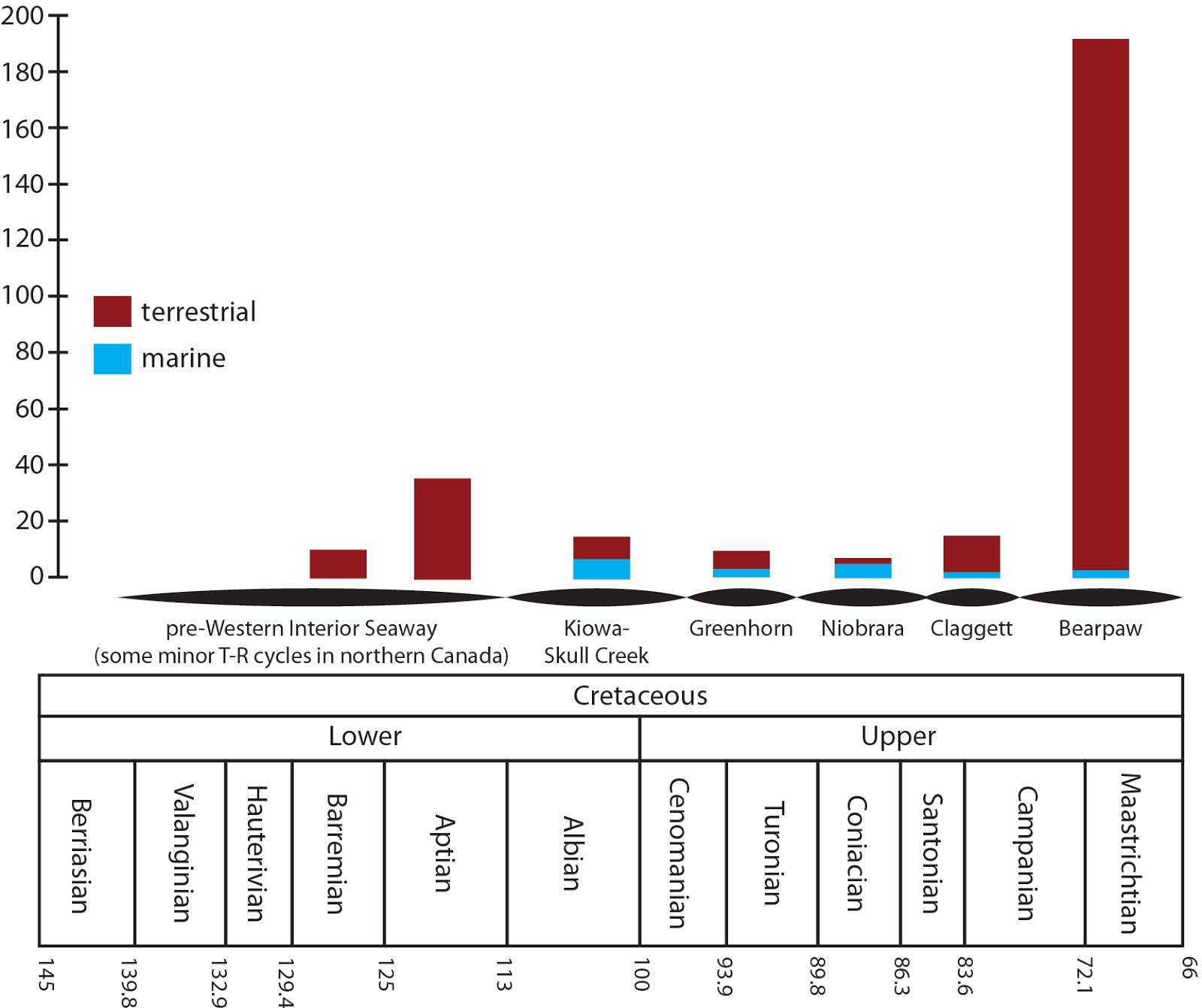

Like this! Unsurprisingly, a huge number of ankylosaur occurrences are clustered at the end of the Cretaceous, largely because of the Dinosaur Park Formation and its well-documented dinosaur fauna. But focus on the marine occurrences and an interesting pattern emerges – while the number of terrestrial occurrences fluctuates widely, the number of marine occurrences stays relatively steady. We think this reflects the absence of terrestrial outcrops for a chunk of the mid Cretaceous when sea levels were at their very highest – in other words, although there’s a greater proportion of marine occurrences in the middle, they don’t really increase in absolute terms and the proportion is being driven by the drop in terrestrial occurrences.

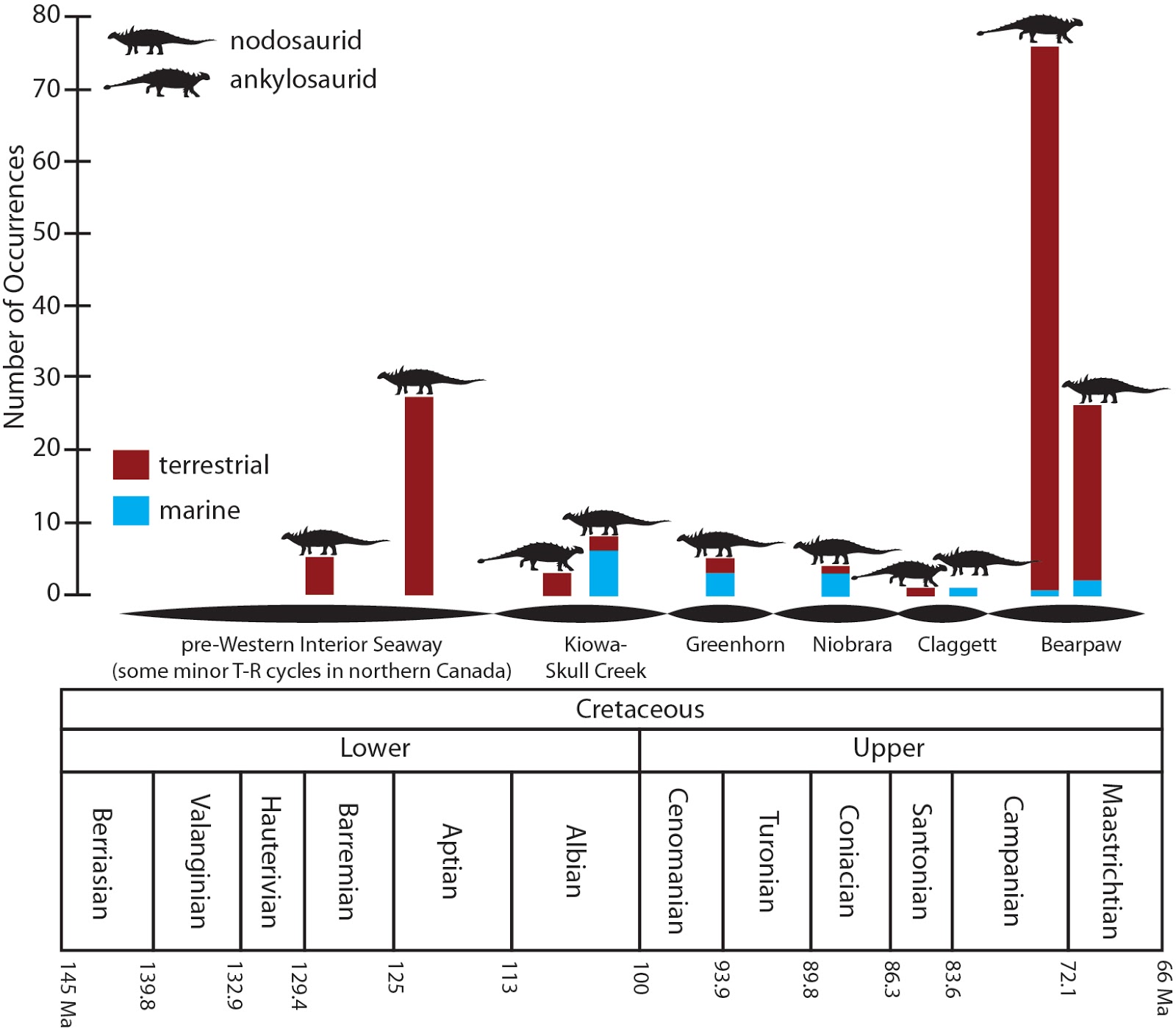

And here’s what it looks like when we exclude indeterminate ankylosaurs. Unfortunately, this is the point at which we lose statistical power for most of the data, which means we can’t really interpret most of the results with any confidence. Plus, there is a good chunk of time in the mid Cretaceous in which there are no ankylosaurids known at all, which probably represents a regional extinction for this group of dinosaurs. BUT, one time bin shows a significant difference between depositional environment and clade – the Kiowa-Skull Creek cycle in the Albian-Cenomanian.

What does it all mean? For one thing, breaking down the global ankylosaur dataset still yields enough statistical power for some analyses to be useful and give us more insight into biogeographic patterns…up to a point. Secondly, there really does seem to be something about nodosaurids that makes them wind up in marine environments more often than ankylosaurids. And this begs the question: why don’t ankylosaurids like the beach? Given that ankylosaurids disappear from North America right around the time that sea levels rose to their highest point, could rising sea levels have led to the extinction of North American ankylosaurids? Did sea levels need to drop substantially before the inland, somewhat desert-dwelling Asian ankylosaurids migrated back into North America in the latest Cretaceous? Did ankylosaurids avoid the European archipelago because they didn’t like to get their feet wet? I don’t have definite answers yet, but I find this pattern terribly interesting and I’m sure this isn’t the last we’ll be looking at this weird split in environmental preferences between ankylosaurids and nodosaurids.

The paper is free until April 22! Get your PDF while it’s still hot! Arbour VM, Zanno LE, Gates T. 2016. Ankylosaurian dinosaur palaeoenvironmental associations were influenced by extirpation, sea-level fluctuation, and geodispersal. Palaeogeography, Palaeoclimatology, Palaeoecology 449:289-299.

2 thoughts on “Ankylosaurs by the sea

  1. I've been listening to some old Tetzoo Podcasts, and a recurring question seems to be “Can (unusual tetrapod) swim?” This post got me thinking. what is your answer for ankylosaurs? Whether or not they did it with any regularity, is it at least physically possible given their bulk?


  2. Good question! I don't see any reason why ankylosaurs couldn't swim if they needed to – their wide fat bodies probably would keep them from rolling over to the side, and presumably their gassy insides would help with flotation. I'm constantly surprised by videos of swimming animals. I spotted this one of a swimming armadillo the other day, so even mammals with extensive osteoderm carapaces can swim when they need to!
